Last stock!

Centsys D2 Turbo Low-voltage Kit

Centsys
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

Free pickup in our store(s) Free pickup in our store(s)

SKU: D2LOWWP30

$939.90 Incl. GST

In stock

Quantity left Only 2 left in stock

Delivery

We ship Australia wide Monday to Friday, direct to your door.

Official warranty
Expert advise
Pick up in Brisbane
Average 24 hour dispatch

D2 TURBO AND D2 TURBO LOW-VOLTAGE
DOMESTIC SLIDING GATE OPERATOR

Prepare for your sliding gate to be turbocharged. The D2 Turbo is a high-speed, cost-effective operator for domestic gates weighing up to 250kg, with a maximum speed of 400 millimeters per second and powerful peak push force rated at 9kgf. This operator is exceptionally quick and easy to install and set up, with all settings easily configurable via two dials on the controller. With loads of features, the D2 Turbo is the complete motor for a standard, domestic four-meter gate.

The D2 Turbo Low-Voltage operator is designed specifically for sites with no mains at the gate to reduce installation costs while delivering outstanding reliability, comprehensive functionality and selectable high-security or standard speeds. With the D2 Turbo Low-Voltage, there is no need for costly high-voltage cable runs and expensive isolators. Simply use a low-voltage step-down transformer or solar power supply. Now that’s fast! Sleek, strong, stylish – and even eco-conscious – this CENTSYS has it all.

MAIN FEATURES:

Turbo speed for greater security and convenience.
Very easy to install and set up, saving you time and money.
Reliable battery backup.
Dedicated Solar Mode – allows you to disable the Mains Fail buzzer when using solar power.
Onboard multichannel CENTSYS receiver.
Multiple Modes of Operation.
Adaptive Collision Sensing.
Modular components clip together for easy maintenance.
Lockable, easy Manual Override.
Now with robust steel pinion – can be easily retro-fitted and ensures reliable operation.

D2 TURBO TECHNICAL DATA:

	DESCRIPTION
Technical Data	D2 Turbo	D2 Turbo Low-voltage
Input voltage ¹	90V– 240V AC ±10%, 50Hz	10V - 20V AC ±10%, 50Hz; 10V - 28V DC
Motor voltage	12V DC	12V DC 3
Motor power supply ⁴	Battery-driven (standard capacity - 12V 5Ah)	Battery-driven (standard capacity - 12V 5Ah)
Current consumption (mains)	Intergral with controller 1A @ 13.7V +/- 1%	Intergral with controller 1A @ 13.7V +/- 1% (Input voltage > 15V AC)
Current consumption (motor at rated load)	8/12A	8/12A
Current consumption (quiescent load)	95mA	95mA
Operator push force
Starting	18kgf	18kgf
Rated	8kgf	8kgf
Gate mass – maximum	250kg	250kg
Gate length - maximum	20m	20m
Gate speed - m/min ⁶	22 - 26m/min	22 - 26m/min
Gate speed - mm/sec	367 - 433mm/sec	367 - 433mm/sec
Drive Pinion	17T Module ⁴	17T Module ⁴
Maximum daily cycle	10 cycles/day	10 cycles/day
Design life	30 000 cycles	30 000 cycles
Operations in standby with standard battery 4, 5
Half day	60 cycles	60 cycles
Full day	40 cycles	40 cycles
Collision sensing	Electronic	Electronic
Operating temperature	-15°C to +50°C	-15°C to +50°C
Degree of protection	IP54	IP54

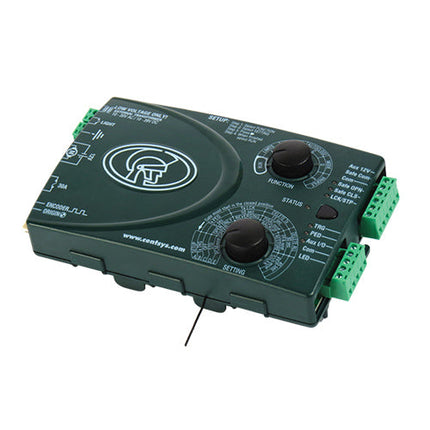

Controller incorporated	D2 Controller_H	D2 Controller_L
Onboard receiver type	NOVA code-hopping onboard, multichannel	NOVA code-hopping onboard, multichannel
Receiver frequency	433.92MHz	433.92MHz
Receiver code storage capacity	32 transmitter buttons	32 transmitter buttons
Mass of unit packed	5kg	5kg
Packaging dimensions	Length: 255mm x Width: 188mm x Height: 333mm	Length: 255mm x Width: 188mm x Height: 333mm

[*] – Can operate off a solar supply, consult CENTSYS for assistance. [**] – A larger 7Ah battery can be used for longer standby times. [***] – Can be configured.
