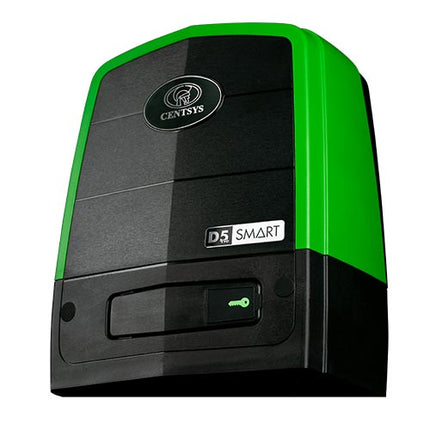

Centsys D5-EVO Smart Gate Motor
- Centsys
SKU: D5ESSTD
$1,149.00 Incl. GST
Only 1 left in stock
Specifications
Installation
Delivery
We ship Australia wide Monday to Friday, direct to your door.
- Official warranty
- Expert advise
- Pick up in Brisbane
- Average 24 hour dispatch
The D5-Evo SMART: Where Legacy Meets Innovation
D5-Evo SMART – Domestic and Light-Commercial Gate Motor
The iconic D5-Evo, reimagined. The gate motor synonymous with reliability and performance just got smarter. Introducing the D5-Evo SMART, powered by award-winning technology and designed to enhance your security experience.
More than just an upgrade – it’s an evolution. The D5-Evo SMART retains the legendary strength and dependability of its predecessor, now enhanced with intelligent features that put you in complete control. Enjoy effortless smartphone control, advanced diagnostics for peace of mind, and dependable battery-driven technology for protection even during power outages.
Unleash the power of SMART:
- Seamless Control: Manage your gate with convenience and flexibility using the user-friendly smartphone app.
- Intelligent Insights: Get advanced notifications, alarms, monitoring and reporting.
- Uninterrupted Security: Battery-driven technology ensures seamless operation during power outages.
- Effortless Setup: Wireless configuration and smartphone control simplify installation.
- Enhanced Security: Improved theft-resistant cage for maximum peace of mind.
- Ultimate Versatility: Individually-configurable inputs and outputs for integration with your SMART ecosystem.
The D5-Evo SMART is a statement. A monument of innovation, a commitment to security, and an assurance of peace of mind. Experience the future of gate control, powered by the legacy of the D5-Evo.
Technical Specifications
| Specification | D5-Evo SMART |
|---|---|
| Input voltage | 110V - 240V AC 50/60Hz |
| Current consumption (mains) | 320mA peak |
| Battery charger output | 1.8A @ 14.3V +/- 5% (28W) |
| Max operations per day | 150 |
| Motor power supply | Battery-driven (1x12V) |
| Motor current (rated load) | 15A |
| I/O 4 & I/O 5 | 100mA (12V) |
| Output O6 | 3A (12V) 10sec Pulse |
| Main Control Card Fuse | Serviceable | 35A |
| Auxiliary Fuse | Resettable | 12V 600mA |
| Charger Fuse | Non-serviceable | 3A slow-blow |
| Motor push force - starting | 30kgf |
| Motor push force - rated | 17kgf |
| Max gate mass | 500kg |
| Max gate length | 20m |
| Gate speed | Up to 24m/min (400mm/sec) |
| Manual override | Lockable with key release |
| Battery backup (half/full day) | 90/70 operations |
| Collision sensing | Electronic |
| Receiver type | Code-hopping multichannel |
| Remote capacity | 1500 remotes |
| Receiver frequency | 433.92MHz |
| IP rating | IP55 |
| Unit mass (excluding rack/battery) | 7.1kg |
| Packaging dimensions | 325mm W x 245mm D x 395mm H |
Compliance: This equipment meets EN 55032 / CISPR 32 Class B standards, offering adequate protection to broadcast services in residential environments.
1. Can operate off a solar supply – consult your local dealer.
2. Based on 25°C ambient temperature without direct sunlight.
3. Max operations assume motor push force <50% of rated capacity.
4. Gate speed adjustable per installation requirements.
5. Battery capacity can be increased for extended backup time.
6. Performance based on a 4m gate without accessories.
7. Multiple buttons per remote can be used.
8. Battery performance depends on type and condition.
