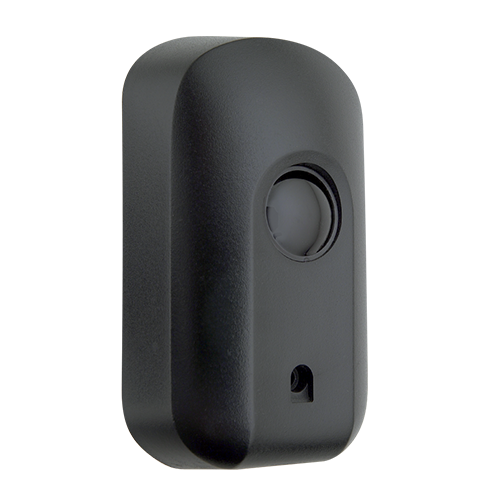

i5 – SAFETY DEVICE

i5 gate safety PE beams from CENTSYS are simple to align, extremely reliable and boasts an operating range of up to 40m. It can be used on gates, garage doors, and even for simple perimeter protection.

MAIN FEATURES:
  • Wide infrared beam makes for supremely easy beam alignment – no more battling onsite.
  • Highly cost-effective detection solution.
  • Easy commissioning thanks to LED indicators.
  • 40 metre range – suitable for even the widest of entrances.
  • Compatible with Intruder-detection Alarm functionality (a world first) – greatly improves security.
  • Wide input voltage range.
Centsys i5 Manual download
I5 INFRARED GATE SAFETY PE BEAMS TECHNICAL DATA:
DESCRIPTION
Power Supply 12 - 24V DC/AC
Power Consumption Transmitter 21mA
Receiver 43mA @ 12V
Maximum Distance 40m
Alignment Automatic - 9m² @ 10m (parallel - circular area)
Output Contact Rating 5A @ 220V AC (non-inductive)
Operating Temperature -15°C to +55°C
Operating Humidity 0% - 90% (non-condensing)
Degree of Protection IP54

Centsys i5 Safety Beam

Product form

Out of stock

SKU: I5BEAM

$110.90 Incl. GST

      Warranty

      Delivery

    We ship Australia wide Monday to Friday, direct to your door.

    i5 – SAFETY DEVICE

    i5 gate safety PE beams from CENTSYS are simple to align, extremely reliable and boasts an operating range of up to 40m. It can be used on gates, garage doors, and even for simple perimeter protection.

    MAIN FEATURES:
    • Wide infrared beam makes for supremely easy beam alignment – no more battling onsite.
    • Highly cost-effective detection solution.
    • Easy commissioning thanks to LED indicators.
    • 40 metre range – suitable for even the widest of entrances.
    • Compatible with Intruder-detection Alarm functionality (a world first) – greatly improves security.
    • Wide input voltage range.
    Centsys i5 Manual download
    I5 INFRARED GATE SAFETY PE BEAMS TECHNICAL DATA:
    DESCRIPTION
    Power Supply 12 - 24V DC/AC
    Power Consumption Transmitter 21mA
    Receiver 43mA @ 12V
    Maximum Distance 40m
    Alignment Automatic - 9m² @ 10m (parallel - circular area)
    Output Contact Rating 5A @ 220V AC (non-inductive)
    Operating Temperature -15°C to +55°C
    Operating Humidity 0% - 90% (non-condensing)
    Degree of Protection IP54
