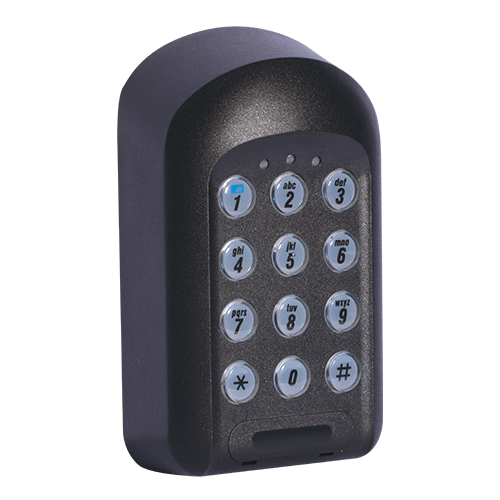

SMARTGUARD – HARD-WIRED ACCESS CONTROL KEYPAD

The SMARTGUARD keypad can accommodate up to 1000 unique PIN codes with any user-defined length from one to ten digits. There are three separate outputs, each configurable to either latching or non-latching. Such functionality caters for many different scenarios for example, a motorised gate entrance may be opened fully using one code, activate the pedestrian opening using another, and switching on the house alarm using a third. User codes can also be selectively deleted without affecting other codes stored in the memory. The keypad also boasts a “downcounter” allowing select codes to have a limited number of uses. This is ideal for granting single occasion access, for example to an armed response company with the code deleting itself after use. The addition of the CENTSYS SmartSwitch maximises security and ensures that even with the keypad mounted outside the property, it cannot be “hotwired” and the integrity of the site jeopardised. The same memory module used on the SupaNOVA may also be used on the SMARTGUARD access control keypad, allowing all the settings and codes to be backed up and restored in seconds.
Centurion Systems SMARTGUARD Keyless access panels
MAIN FEATURES:
  • SMARTGUARD for hard-wired installations.
  • 1000 unique codes using one to ten digits.
  • Three channel output.
  • Selectively add and delete user codes.
  • Backup Memory Module.
  • Limited uses counter.
  • Fully weatherproof with backlit keypad.
  • SmartSwitch for tamper-proof outputs.
Centurion Systems SMARTGUARD Keyless access panels logo
SMARTGUARD TECHNICAL DATA:
DESCRIPTION
Supply voltage 12V - 24V AC/DC
Current 32mA (standby) - 180mA (max)
Operating temperature -20ºC to +60ºC
Outputs Three (One relay output, two open collector outputs)
Output pulse time range 1 - 255 sec (adjustable) or latched
Memory 1000 user codes
Size 132mm x 80mm x 38mm
Housing material Polycarbonate
Degree of protection IP55
Colour Black



DOCUMENTS:

SMARTGUARD Brochure (195 kb)
SMARTGUARD Pocket Installation Guide (2269 kb)
SMARTGUARDair Pocket Installation Guide (2299 kb)

Centsys SMARTGUARD Keypad

Product form

Out of stock

SKU: SGWIRED

$168.90 Incl. GST

      Warranty

      Delivery

    We ship Australia wide Monday to Friday, direct to your door.

    SMARTGUARD – HARD-WIRED ACCESS CONTROL KEYPAD

    The SMARTGUARD keypad can accommodate up to 1000 unique PIN codes with any user-defined length from one to ten digits. There are three separate outputs, each configurable to either latching or non-latching. Such functionality caters for many different scenarios for example, a motorised gate entrance may be opened fully using one code, activate the pedestrian opening using another, and switching on the house alarm using a third. User codes can also be selectively deleted without affecting other codes stored in the memory. The keypad also boasts a “downcounter” allowing select codes to have a limited number of uses. This is ideal for granting single occasion access, for example to an armed response company with the code deleting itself after use. The addition of the CENTSYS SmartSwitch maximises security and ensures that even with the keypad mounted outside the property, it cannot be “hotwired” and the integrity of the site jeopardised. The same memory module used on the SupaNOVA may also be used on the SMARTGUARD access control keypad, allowing all the settings and codes to be backed up and restored in seconds.
    Centurion Systems SMARTGUARD Keyless access panels
    MAIN FEATURES:
    • SMARTGUARD for hard-wired installations.
    • 1000 unique codes using one to ten digits.
    • Three channel output.
    • Selectively add and delete user codes.
    • Backup Memory Module.
    • Limited uses counter.
    • Fully weatherproof with backlit keypad.
    • SmartSwitch for tamper-proof outputs.
    Centurion Systems SMARTGUARD Keyless access panels logo
    SMARTGUARD TECHNICAL DATA:
    DESCRIPTION
    Supply voltage 12V - 24V AC/DC
    Current 32mA (standby) - 180mA (max)
    Operating temperature -20ºC to +60ºC
    Outputs Three (One relay output, two open collector outputs)
    Output pulse time range 1 - 255 sec (adjustable) or latched
    Memory 1000 user codes
    Size 132mm x 80mm x 38mm
    Housing material Polycarbonate
    Degree of protection IP55
    Colour Black



    DOCUMENTS:

    SMARTGUARD Brochure (195 kb)
    SMARTGUARD Pocket Installation Guide (2269 kb)
    SMARTGUARDair Pocket Installation Guide (2299 kb)
