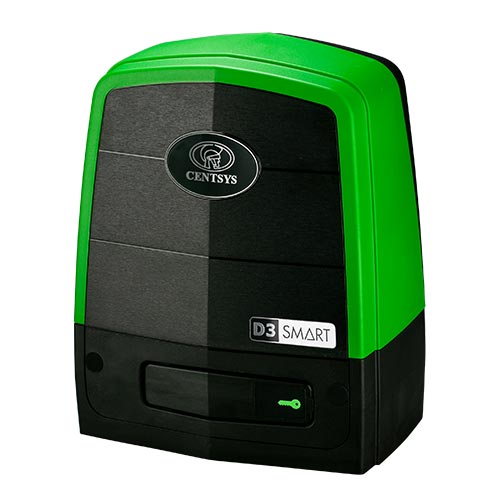

D3 SMART Gate Motor: Smart for Modern Homes
Beyond the basics – bringing innovation to every entryway
Experience the smart security you deserve, now within reach. The D3 SMART gate motor embodies the philosophy of simplicity being the pinnacle of sophistication. It combines sleek design and premium performance with intelligent features, making secure and reliable gate automation accessible to everyone.
D3 SMART is packed with advanced – yet intuitive and user-friendly – functionality to make your life easier. Effortlessly control your gate with the MyCentsys Remote smartphone app, receive advanced diagnostic feedback for ultimate peace of mind, and enjoy dependable battery-driven technology that stands up to power outages.
Installer-friendly, feature-rich, and budget-conscious, D3 SMART is the smarter choice for your home.
Here’s why you’ll love the D3 SMART:
-
Fast and Secure: Rapid gate opening and closing for swift access and robust security.
-
Smart Control: Manage your gate with the user-friendly smartphone app.
-
Easy Installation: Designed with the installer in mind for efficient setup.
-
Reliable Performance: Battery-driven technology ensures dependable operation.
-
Intelligent Features: Advanced alerts, notifications, and reporting.
-
Peace of Mind: Theft-resistant cage for enhanced security.
-
Convenient Commissioning and Operation: Smartphone setup and single-action manual release.
-
Wireless, Effortless Safety: Compatible with Photon SMART Beams for a complete wireless safety solution.
Upgrade your security without breaking a sweat. Choose the D3 SMART gate motor – the smart choice for every home.
Technical Data
| Specification |
D3 SMART |
| Input voltage |
110V - 240V AC 50/60Hz |
| Current consumption (mains) |
320mA peak |
| Battery charger current output |
1.8A @ 14.3V +/- 5% (28W) |
| Max operations per day |
20 |
| Duty cycle |
25% |
| Motor power supply |
Battery-driven (1x12V) |
| Current consumption (motor) |
11A |
Technical Specifications Continued
| Specification |
D3 SMART |
| Main Control Card Fuse |
Serviceable | 35A |
| Aux. Supply Fuse |
Resettable | 12V 300mA MAX |
| Charger Fuse |
Non-serviceable | 3A slow-blow |
| Motor push force (start) |
18kgf |
| Motor push force (rated) |
12kgf |
| Max gate mass |
300kg |
| Gate speed |
Up to 24m/min (400mm/sec) |
| Manual Override |
Lockable with key release |
| Battery backup operations (half/full day) |
90/70 |
| Collision Sensing |
Electronic |
| Operating temperature |
-15°C to +50°C |
| Receiver type |
Code-hopping multichannel |
| Remote capacity |
32 remotes |
| Receiver frequency |
433.92MHz |
| IP Rating |
IP55 |
| Unit mass (excluding rack/battery) |
6.7kg |
| Packaging dimensions |
325mm W x 245mm D x 395mm H |
1. Operates off solar supply (check with dealer).
2. Specifications based on 25°C ambient temperature.
3. Max operations based on motor push force <50% rated.
4. Speed can be adjusted for specific installations.
5. Battery capacity can be increased for longer backup.
6. Max figures based on a 4m gate without accessories.
7. Multiple remote buttons can be used.
8. Battery performance depends on type and condition.
